View Issue Details

IDProjectCategoryView StatusLast Update
0006146SOGoBackend Generalpublic2025-09-05 08:28
Reportersobyaninyd Assigned Toqhivert
PriorityhighSeverityblockReproducibilityalways
Status assignedResolutionopen
PlatformDebian 12OSDebian 12OS VersionDebian 12
Product Version5.12.3
Summary0006146: OpenID&ADFS Can't get user email from profile because: no mail found
Description

In the logs I get an error when using AD FS as Openid: [error] <0x5583FC7BE930 [SOGOOPENIDSSISION] :( NULL)> CANT GETOMMEN FROM PROFILE BECAUSE: No Mail Found

log SOGo:
Sep 04 20:07:29 sogod [19617]: |SOGo| looked up value: (null)
Sep 04 20:07:29 sogod [19617]: |SOGo| lookup in root object: (null)
Sep 04 20:07:29 sogod [19617]: |SOGo| GOT: (null)
Sep 04 20:07:29 sogod [19617]: |SOGo| matched appname: SOGo
Sep 04 20:07:29 sogod [19617]: |SOGo| => rewrote value: <SOGo[0x0x5583fc27c480]: name=SOGo>
Sep 04 20:07:29 sogod [19617]: |SOGo| lookup name: GET
Sep 04 20:07:29 sogod [19617]: [ERROR] <0x5583fc8064a0[SOGoOpenIdSession]:(null)> Can't get user email from profile because: no mail found
Sep 04 20:07:29 sogod [19617]: |SOGo| looked up value: <0x0x5583fc828510[SoPageInvocation]: class=SOGoRootPage bound instantiated product=<0x0x5583fc1d86e0[SoProduct]: loaded code-loaded bundle=/usr/lib/GNUstep/SOGo/MainUI.SOGo #classes=8 #categories=4 rm=0x0x5583fc1e20c0>>
Sep 04 20:07:29 sogod [19617]: |SOGo| GOT: <0x0x5583fc828510[SoPageInvocation]: class=SOGoRootPage bound instantiated product=<0x0x5583fc1d86e0[SoProduct]: loaded code-loaded bundle=/usr/lib/GNUstep/SOGo/MainUI.SOGo #classes=8 #categories=4 rm=0x0x5583fc1e20c0>>
Sep 04 20:07:29 sogod [19617]: [ERROR] <0x5583fc836c60[SOGoOpenIdSession]:(null)> Can't get user email from profile because: no mail found
Sep 04 20:07:30 sogod [19617]: [ERROR] <0x5583fc797840[SOGoOpenIdSession]:(null)> Can't get user email from profile because: no mail found
Sep 04 20:07:30 sogod [19617]: [ERROR] <0x5583fc806a80[SOGoOpenIdSession]:(null)> Can't get user email from profile because: no mail found
Sep 04 20:07:30 sogod [19617]: |SOGo| request took 0.870950 seconds to execute
Sep 04 20:07:30 sogod [19617]: 192.168.68.201 "GET /SOGo/?code=ABf8Gq3vUkO2Cse6lYOJjQ.5_Rih9Xr3Qh7AVDR8FXNoWamaKQ.WBN9MX396zx-66VvHhXY3B82yhTt4ZZbgVBVcRlamiJ_zkwaIhapmES-khNiN3dMR5OD3d35wLB75WKM8ZbdxgnHCNrv1KFx7I9eEeMCFBKke_fTUrZ1RvkptZctONvRJx69NuUGjMnYsOxZZ9FuWTS4RRSheKiCT6IGH5HzerdvpD3JfU143kmHv6v0HhIa8LE-wg5d-Zom0X9t1qzuQZzVO-4Uya39Di9-o8q9VySx9gwQ1-jee9TFOwawOZN0AOLYRiu6mVnPq5DBB6DGHAs2Ay9Ad3M5MgnqGicH-63DtglJGRlHBFgB3Evldqj_bH_hAWk1dv_rctVxGel8kA&state=16875f3e4c45a00a3b11983ccfa0e662fcdb0f80 HTTP/1.1" 302 0/0 0.873 - - 120K - 11
Sep 04 20:07:30 sogod [19617]: |SOGo| starting method 'GET' on uri '/SOGo/'
Sep 04 20:07:30 sogod [19617]: [ERROR] <0x5583fc7be930[SOGoOpenIdSession]:(null)> Can't get user email from profile because: no mail found
Sep 04 20:07:30 sogod [19617]: |SOGo| lookup name: SOGo
Sep 04 20:07:30 sogod [19617]: |SOGo| did not find key 'SOGo' in SoClass: <0x0x5583fc184a80[SoObjCClass]: super=0x0x5583fc183c70 objc=SOGo slots=passwordRecoveryEnabled,passwordRecoveryCheck,connect,casProxy,GET,Microsoft-Server-ActiveSync,view,index,SOGoAPI,passwordRecoveryEmail,connectName,saml2-signon-post,loading,openid_redirect,saml2-metadata,toolbar,passwordRecovery,saml2-sls,changePassword>

Log on the side of AD FS:

  • <Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event&quot;>
    • <System>
      <Provider Name="AD FS" Guid="{2ffb687a-1571-4ace-8550-47ab5ccae2bc}" />
      <EventID>1020</EventID>
      <Version>0</Version>
      <Level>2</Level>
      <Task>0</Task>
      <Opcode>0</Opcode>
      <Keywords>0x8000000000000001</Keywords>
      <TimeCreated SystemTime="2025-09-04T16:41:30.046233400Z" />
      <EventRecordID>151</EventRecordID>
      <Correlation ActivityID="{890621ec-5476-4483-370a-0080010000fd}" />
      <Execution ProcessID="1408" ThreadID="1840" />
      <Channel>AD FS/Admin</Channel>
      <Computer>cd1.rupost.xyz</Computer>
      <Security UserID="S-1-5-21-1587453395-1195599393-282800124-1104" />
      </System>
    • <UserData>
    • <Event xmlns="http://schemas.microsoft.com/ActiveDirectoryFederationServices/2.0/Events&quot;>
    • <EventData>
      <Data>Microsoft.IdentityServer.Web.InvalidRequestException: MSIS7042: в течение одного сеанса браузера клиента за последние "9" сек. создано запросов: "6". Для получения дополнительных сведений обратитесь к администратору. в Microsoft.IdentityServer.Web.Protocols.PassiveProtocolHandler.UpdateLoopDetectionCookie(WrappedHttpListenerContext context) в Microsoft.IdentityServer.Web.Protocols.PassiveProtocolHandler.ProcessCommonCookiesInLastAuthenticationStage(ProtocolContext context) в Microsoft.IdentityServer.Web.Protocols.OAuth.OAuthAuthorization.OAuthAuthorizationProtocolHandler.SendAuthorizationResponse(OAuthAuthorizationRequestContext authContext, OAuthAuthorizationResponseMessage authResponse)</Data>
      </EventData>
      </Event>
      </UserData>
      </Event>

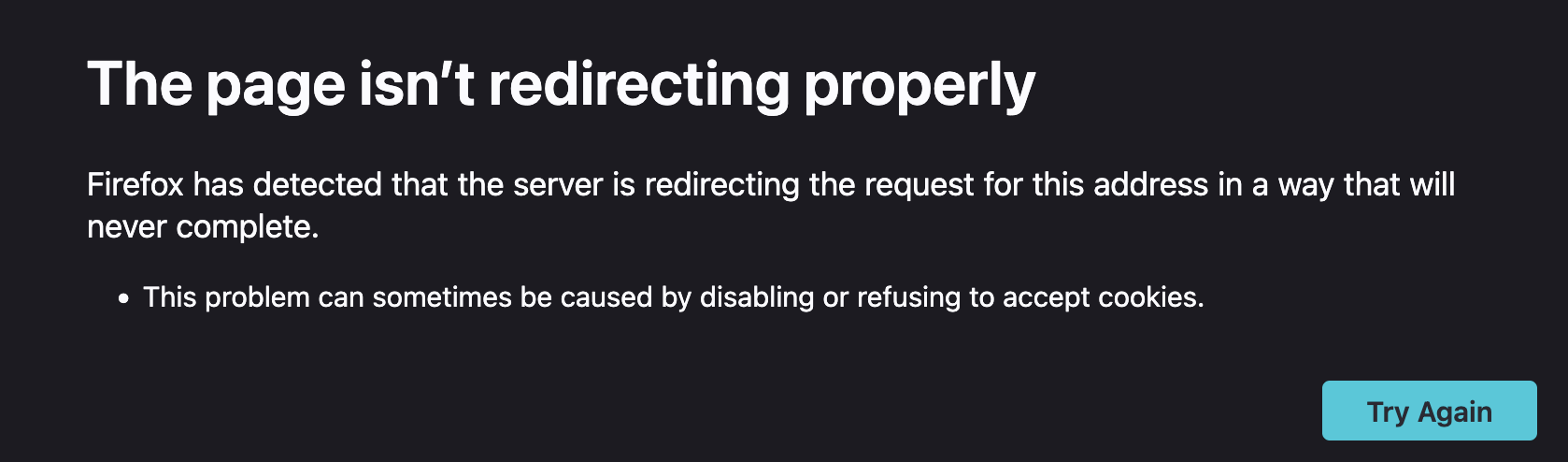

In the browser, when contacting Sogo, it redirects me to AD FS where after authentication I get into the redirect loop.

My config:
....
SOGoMailingMechanism = smtp;
NGImap4AuthMechanism = "xoauth2";
....
SOGoAuthenticationType = openid;
SOGoXSRFValidationEnabled = NO;
SOGoOpenIdConfigUrl = "https://sso.example.com/adfs/.well-known/openid-configuration&quot;;
SOGoOpenIdClient = "385de99b-52a2-9db2-ad60-6d645cb0ce05";
SOGoOpenIdClientSecret = "LoBmlaFytUoGeF1-kLiojVmvSsUZoWInxuTkSKam";
SOGoOpenIdScope = "openid profile email";
SOGoOpenIdEmailParam = "email";
SOGoOpenIdEnableRefreshToken = YES;
SOGoOpenIdTokenCheckInterval = 300;
SOGoOpenIdLogoutEnabled = YES;
OCSOpenIdURL = "postgresql://sogo:sogo@192.168.68.218:5432/sogo_data/sogo_openid";

TagsNo tags attached.

Activities

sobyaninyd

sobyaninyd

2025-09-04 17:36

reporter

qhivert

qhivert

2025-09-05 06:39

administrator   ~0018327

Hello,

It means SOGo properly fecth the user profile but didn't find the mail inside. A basic user profile looks is a dict like this

{
"sub":"70a3e6a1-37cf-4cf6-b114-6973aabca86a",
"email_verified":false,
"name":"Foo Bar",
"preferred_username":"myuser",
"given_name":"Foo",
"family_name":"Bar",
"email":"myuser@user.com"
}
To set which key is the mail one, you can set this parameter in your sogo.conf
SOGoOpenIdEmailParam = "email";

Can you add this to your sogo.conf to get more logs? It will show the user profile result.
SOGoOpenIDDebugEnabled = YES;

sobyaninyd

sobyaninyd

2025-09-05 08:28

reporter   ~0018328

In the log I see the following:
2025-09-05 10:20:57.207 sogod[25732:25732] OpenId perform request: GET https://sso.example.com/adfs/userinfo
2025-09-05 10:20:57.207 sogod[25732:25732] OpenId perform request, headers {authorization = "Bearer <token>"; "content-type" = "application/x-www-form-urlencoded"; }
2025-09-05 10:20:57.207 sogod[25732:25732] OpenId perform request, body raw (null)
2025-09-05 10:20:57.277 sogod[25732:25732] OpenId perform request: response is: <SimpleOpenIdResponse> <status: 200>, <headers: HTTP/2 200
content-length: 0
content-type: text/html; charset=utf-8
server: Microsoft-HTTPAPI/2.0
strict-transport-security: max-age = 31536000
x-content-type-options: nosniff
x-xss-protection: 1; mode=block
content-security-policy: default-src 'self' 'unsafe-inline' 'unsafe-eval'; img-src 'self' data:;
date: Fri, 05 Sep 2025 07:20:56 GMT

, <content: >
Sep 05 10:20:57 sogod [25732]: [ERROR] <0x55ac8a247670[SOGoOpenIdSession]:(null)> Can't get user email from profile because: no mail found

The token contains the following information:
{
"aud": "microsoft:identityserver:385de95b-52a2-4db2-ad60-6d326cb0bd05",
"iss": "http://sso.example.com/adfs/services/trust&quot;,
"iat": 1757060637,
"nbf": 1757060637,
"exp": 1757064237,
"email": "sobyaninyd@example.com",
"upn": "sobyaninyd@example.com",
"preferred_username": "sobyaninyd",
"apptype": "Confidential",
"appid": "385de95b-52a2-4db2-ad60-6d326cb0bd05",
"authmethod": "urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport",
"auth_time": "2025-09-05T08:23:52.144Z",
"ver": "1.0",
"scp": "allatclaims email profile openid"
}

Also in the logs there is an access_token which contains the same thing as in authorization = "Bearer <token>

id_token:
{
"aud": "385de95b-52a2-4db2-ad60-6d326cb0bd05",
"iss": "https://sso.example.com/adfs&quot;,
"iat": 1757060639,
"nbf": 1757060639,
"exp": 1757064239,
"auth_time": 1757060632,
"sub": "yiB7NrFulQsF/RRA4CjktR0yPUVuEyRyzhI2fyiqYMk=",
"unique_name": "DOMAIN\sobyaninyd",
"sid": "S-1-5-21-1587453395-1195599393-282800124-1103",
"upn": "sobyaninyd@example.com",
"email": "sobyaninyd@example.com",
"preferred_username": "sobyaninyd",
"apptype": "Confidential",
"appid": "385de95b-52a2-4db2-ad60-6d326cb0bd05",
"authmethod": "urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport",
"ver": "1.0",
"scp": "allatclaims email profile openid"
}

i.e. this is the information received when accessing https://sso.example.com/adfs/oauth2/token (see screenshot)
