Please share an anonymized version of your sogo.conf file. SOGoXSRFValidationEnabled is supported for internal authentication (LDAP and SQL).

Anonymised version of sogo.conf

{
/* ***** Main SOGo configuration file **

• *
• Since the content of this file is a dictionary in OpenStep plist format, *
• the curly braces enclosing the body of the configuration are mandatory. *
• See the Installation Guide for details on the format. *
• *
• C and C++ style comments are supported. *
• *
• This example configuration contains only a subset of all available *
• configuration parameters. Please see the installation guide more details. *
• *
• ~sogo/GNUstep/Defaults/.GNUstepDefaults has precedence over this file, *
• make sure to move it away to avoid unwanted parameter overrides. *
• *

• **/

  / Database configuration (mysql://, postgresql:// or oracle://) /
  SOGoProfileURL = "mysql://adminsql:XXXXXX@sogodb:3306/sogo/sogo_user_profile";
  OCSFolderInfoURL = "mysql://adminsql:XXXXXX@sogodb:3306/sogo/sogo_folder_info";
  OCSSessionsFolderURL = "mysql://adminsql:XXXXXX@sogodb:3306/sogo/sogo_sessions_folder";
  MySQL4Encoding = "utf8mb4";

  / Mail /
  SOGoDraftsFolderName = Drafts;
  SOGoSentFolderName = Sent;
  SOGoTrashFolderName = Trash;
  SOGoJunkFolderName = Spam;

  SOGoIMAPServer = "imaps://imap.example.com:993";
  SOGoSMTPServer = "smtp.example.com";
  SOGoMailDomain = example.com;
  SOGoMailingMechanism = smtp;

  / Notifications /
  SOGoAppointmentSendEMailNotifications = YES;
  SOGoACLsSendEMailNotifications = NO;
  SOGoFoldersSendEMailNotifications = NO;

  / Public sharing of calendar and address book /
  SOGoEnablePublicAccess = NO;

  / Authentication /
  SOGoPasswordChangeEnabled = NO;

  / LDAP authentication /
  SOGoUserSources = (
  {
  type = ldap;
  CNFieldName = cn;
  IDFieldName = uid; // first field of the DN for direct binds
  UIDFieldName = uid;

  bindFields = (uid, mail); // array of fields to use for indirect binds
  baseDN = "ou=People,dc=example,dc=com";
  bindDN = "cn=sogo,dc=example,dc=com";
  bindPassword = "XXXXXXXXXXX";
  bindAsCurrentUser = NO;

  canAuthenticate = YES;
  filter = "(mail='*')";

  displayName = "Example Addresses";
  hostname = "ldaps://ldap1.example.com";
  id = directory;
  isAddressBook = YES;
  }
  );

  / Web Interface /
  SOGoPageTitle = "Example Webmail";
  SOGoVacationEnabled = NO;
  SOGoForwardEnabled = NO;
  SOGoSieveScriptsEnabled = NO;

  //SOGoTrustProxyAuthentication = NO;
  //SOGoXSRFValidationEnabled = YES;

  / General - SOGoTimeZone MUST be defined /
  SOGoLanguage = English;
  SOGoTimeZone = Europe/Paris;
  SOGoCalendarDefaultRoles = (
  PublicDAndTViewer,
  ConfidentialDAndTViewer
  );
  //SxVMemLimit = 384;
  WOPidFile = "/var/run/sogo/sogo.pid";
  SOGoMemcachedHost = "/var/run/memcached/memcached.sock";

  SOGoMaximumFailedLoginCount = 5;
  SOGoMaximumFailedLoginInterval = 10; // seconds
  SOGoFailedLoginBlockInterval = 300; // seconds
  SOGoCacheCleanupInterval = 300;

  / Debug /
  //SOGoDebugRequests = YES;
  SoDebugBaseURL = YES;
  //ImapDebugEnabled = YES;
  //LDAPDebugEnabled = YES;
  //PGDebugEnabled = YES;
  //MySQL4DebugEnabled = YES;
  SOGoUIxDebugEnabled = YES;
  //WODontZipResponse = YES;
  WOLogFile = /var/log/sogo/sogo.log;
  }

{
  /* *********************  Main SOGo configuration file  **********************
   *                                                                           *
   * Since the content of this file is a dictionary in OpenStep plist format,  *
   * the curly braces enclosing the body of the configuration are mandatory.   *
   * See the Installation Guide for details on the format.                     *
   *                                                                           *
   * C and C++ style comments are supported.                                   *
   *                                                                           *
   * This example configuration contains only a subset of all available        *
   * configuration parameters. Please see the installation guide more details. *
   *                                                                           *
   * ~sogo/GNUstep/Defaults/.GNUstepDefaults has precedence over this file,    *
   * make sure to move it away to avoid unwanted parameter overrides.          *
   *                                                                           *
   * **************************************************************************/

  /* Database configuration (mysql://, postgresql:// or oracle://) */
  SOGoProfileURL = "mysql://adminsql:XXXXXX@sogodb:3306/sogo/sogo_user_profile";
  OCSFolderInfoURL = "mysql://adminsql:XXXXXX@sogodb:3306/sogo/sogo_folder_info";
  OCSSessionsFolderURL = "mysql://adminsql:XXXXXX@sogodb:3306/sogo/sogo_sessions_folder";
  MySQL4Encoding = "utf8mb4";

  /* Mail */
  SOGoDraftsFolderName = Drafts;
  SOGoSentFolderName = Sent;
  SOGoTrashFolderName = Trash;
  SOGoJunkFolderName = Spam;

  SOGoIMAPServer = "imaps://imap.example.com:993";
  SOGoSMTPServer = "smtp.example.com";
  SOGoMailDomain = example.com;
  SOGoMailingMechanism = smtp;

  /* Notifications */
  SOGoAppointmentSendEMailNotifications = YES;
  SOGoACLsSendEMailNotifications = NO;
  SOGoFoldersSendEMailNotifications = NO;

  /* Public sharing of calendar and address book */
  SOGoEnablePublicAccess = NO;

  /* Authentication */
  SOGoPasswordChangeEnabled = NO;

  /* LDAP authentication */
  SOGoUserSources = (
    {
     type = ldap;
     CNFieldName = cn;
     IDFieldName = uid; // first field of the DN for direct binds
     UIDFieldName = uid;

     bindFields = (uid, mail); // array of fields to use for indirect binds
     baseDN = "ou=People,dc=example,dc=com";
     bindDN = "cn=sogo_ldap,dc=example,dc=com";
     bindPassword = "XXXXXXXXXXX";
     bindAsCurrentUser = NO;

     canAuthenticate = YES;
     filter = "(mail='*')";

     displayName = "Example Addresses";
     hostname = "ldaps://ldap1.example.com";
     id = directory;
     isAddressBook = YES;
    }
  );

  /* Web Interface */
  SOGoPageTitle = "Example Webmail";
  SOGoVacationEnabled = NO;
  SOGoForwardEnabled = NO;
  SOGoSieveScriptsEnabled = NO;

  //SOGoTrustProxyAuthentication = NO;
  //SOGoXSRFValidationEnabled = YES;

  /* General - SOGoTimeZone *MUST* be defined */
  SOGoLanguage = English;
  SOGoTimeZone = Europe/Paris;
  SOGoCalendarDefaultRoles = (
    PublicDAndTViewer,
    ConfidentialDAndTViewer
  );
  WOPidFile = "/var/run/sogo/sogo.pid";
  SOGoMemcachedHost = "/var/run/memcached/memcached.sock";

  SOGoMaximumFailedLoginCount = 5;
  SOGoMaximumFailedLoginInterval = 10; // seconds
  SOGoFailedLoginBlockInterval = 300; // seconds
  SOGoCacheCleanupInterval = 300;

  /* Debug */
  //SOGoDebugRequests = YES;
  SoDebugBaseURL = YES;
  //ImapDebugEnabled = YES;
  //LDAPDebugEnabled = YES;
  //PGDebugEnabled = YES;
  //MySQL4DebugEnabled = YES;
  SOGoUIxDebugEnabled = YES;
  //WODontZipResponse = YES;
  WOLogFile = /var/log/sogo/sogo.log;
}

It should work with this configuration. Try to empty your browser's cache, restart your Web server and memcached instance.

I did it all before, including connecting from private browsing. I even rebooted the server before restoring.

Also, aside from memcached there are no caching servers associated with sogo.

Now that I have a test server handy, I will triple check though. However the 500 error is delivered from the local Apache which sends all to sogo daemon, so it looks like there is a issue bigger than cache at hand.

I've re-run tests this morning, still reproducible 100% as soon as I enable XSRF and reload.

[code]
2021-06-22 09:32:31.472 sogod[3762:3762] <MySQL4Channel[0x0x560c94fd93b0] connection=0x0x560c94e201b0> query has results, entering fetch-mode.
Jun 22 09:32:31 sogod [3762]: |SOGo| request took 0.044940 seconds to execute
Jun 22 09:32:31 sogod [3762]: 192.168.100.54, 193.48.252.35 "GET /SOGo/so/test/Calendar/alarmslist?browserTime=1624347151 HTTP/1.1" 500 36/0 0.047 - - 0 - 13
Jun 22 09:32:31 sogod [3764]: |SOGo| request took 0.104119 seconds to execute
Jun 22 09:32:31 sogod [3764]: 192.168.100.54, 193.48.252.35 "GET /SOGo/so/test/Mail/0/view HTTP/1.1" 500 36/0 0.113 - - 3M - 13
Jun 22 09:32:31 sogod [3763]: |SOGo| request took 0.145917 seconds to execute
Jun 22 09:32:31 sogod [3763]: 192.168.100.54, 193.48.252.35 "POST /SOGo/so/test/Mail/0/folderINBOX/view HTTP/1.1" 500 36/126 0.150 - - 3M - 13
[/code]

With SOGoXSRFValidationEnabled set to 'NO', everything is back, no more HTTP error code 500.

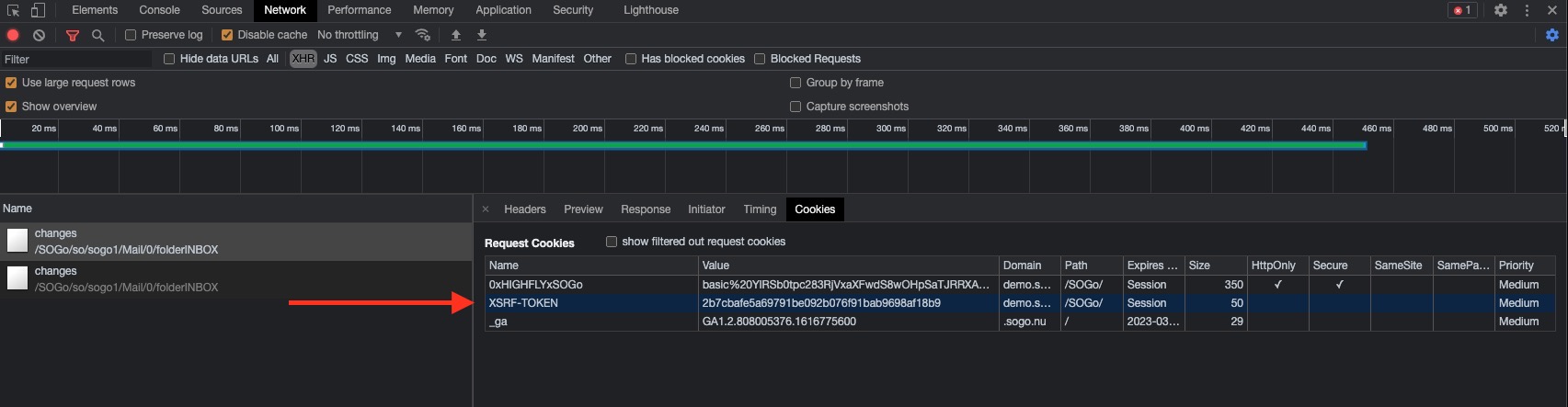

Is the XSRF-TOKEN cookie properly sent by the server?

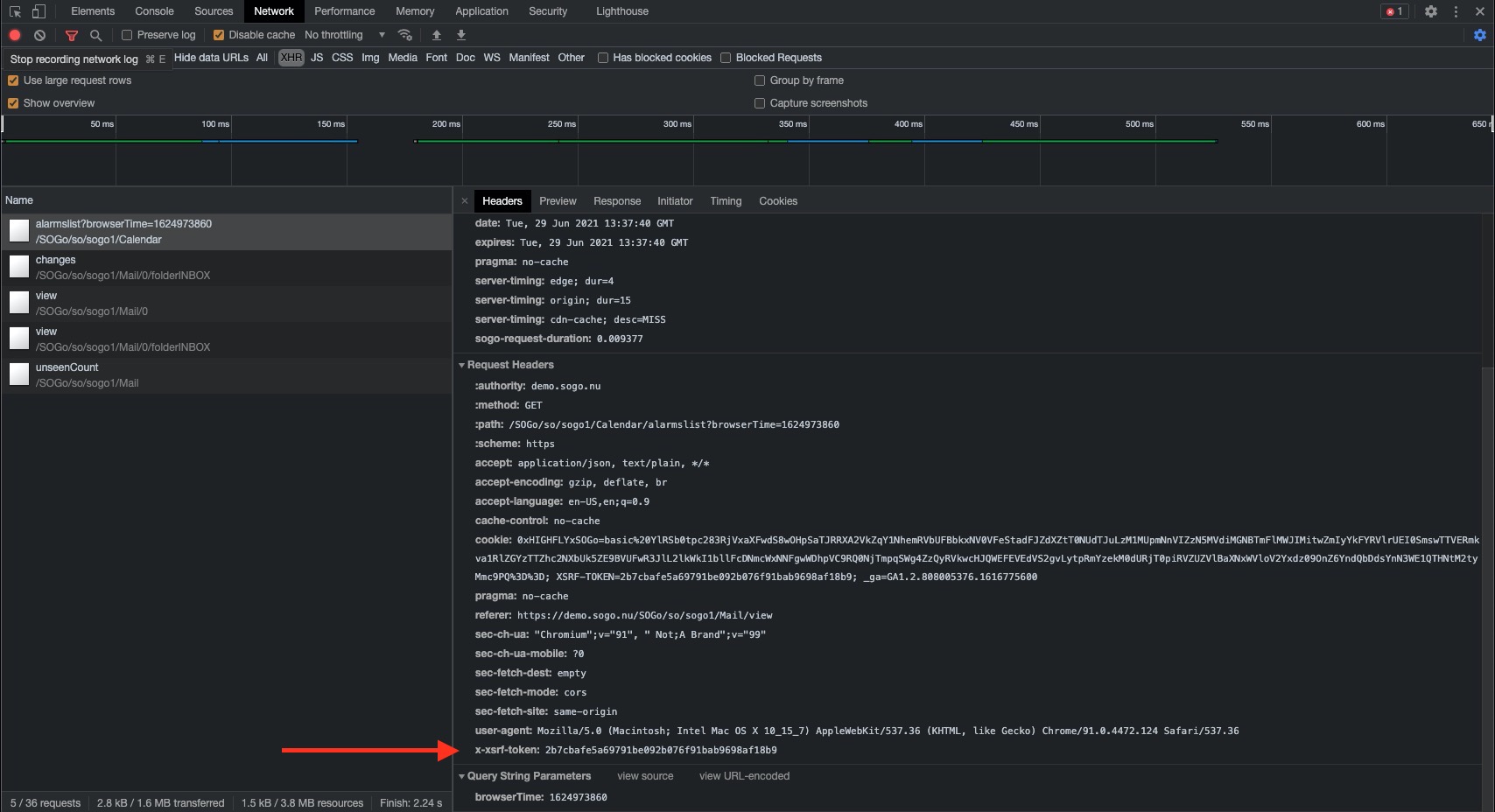

Is the x-xsrf-token header properly sent by the browser? Can you sniff the HTTP traffic on port 20000 (sogod) to make sure the header reaches SOGo?

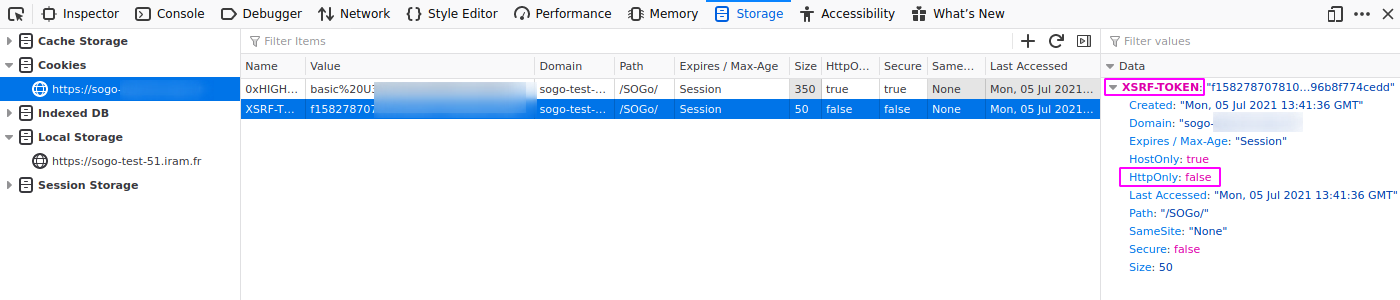

xsrf-token cookie.jpg (121,018 bytes)

xsrf-token cookie.jpg (121,018 bytes)

x-xsrf-token header.jpg (215,199 bytes)

x-xsrf-token header.jpg (215,199 bytes)

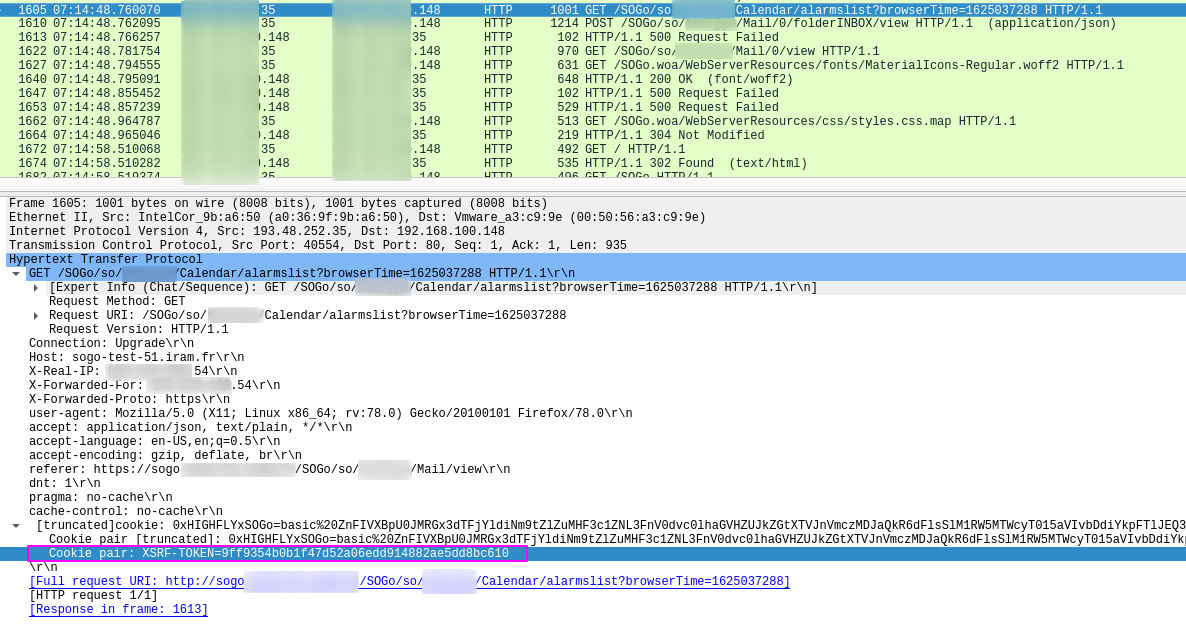

Below is the packet capture from the Sogo server, as it receives the packets from the reverse proxy.

How about the x-xsrf-token header sent by the client? I don't see it in your packet capture.

Putting the solution here as well: if you have enabled httpOnly for your cookies on Apache, you need to disable it for XSRF to work and not break Sogo.

Typically, I had to comment out the following line in my Apache configuration :

#Header edit Set-Cookie ^(.*)$ $1;HttpOnly;Secure

Reference: https://github.com/angular/angular/issues/20511#issuecomment-473740783



Then I do get the X-XSRF-TOKEN header. I hope this helps others facing the same issue.



Indeed, the CSRF token cookie must not have httpOnly flag, as it is intended to be read by the JavaScript by design.
