View Issue Details

IDProjectCategoryView StatusLast Update
0005799SOGowith SOGopublic2023-06-22 09:40
Reporterbe.lnrw Assigned To
PrioritynormalSeverityminorReproducibilityalways
Status newResolutionopen
Product Version5.8.2
Summary0005799: Active tabs in SOGo are not visible enough
Description

WCAG success criterion: color is not used as the only visual means to inform, indicate an action, elicit a response, or distinguish a visual element. The selected menu item, as well as the selected appointment setting (highlighted in red are merely indicated by color highlighting. An additional symbol, an underline or bold is not given. The required contrast ratio of at least 3:1 to the other menu items or appointment icons is is not met with a value of 2:1. In particular, this makes it difficult for visually impaired users to recognize the active element and thus its current selection or position within the website.

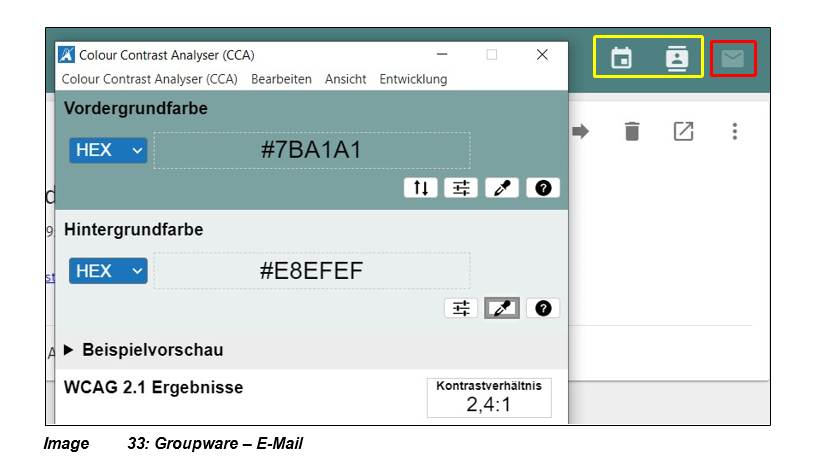

The menu item marked in red is only highlighted in color. There is no additional symbol, underlining or bolding given. The required contrast ratio of at least 3:1 to the other menu items (highlighted in yellow) is not met with a value of 2.4:1. Furthermore, it is only indicated in color that the menu item is currently selected and the corresponding page is displayed.

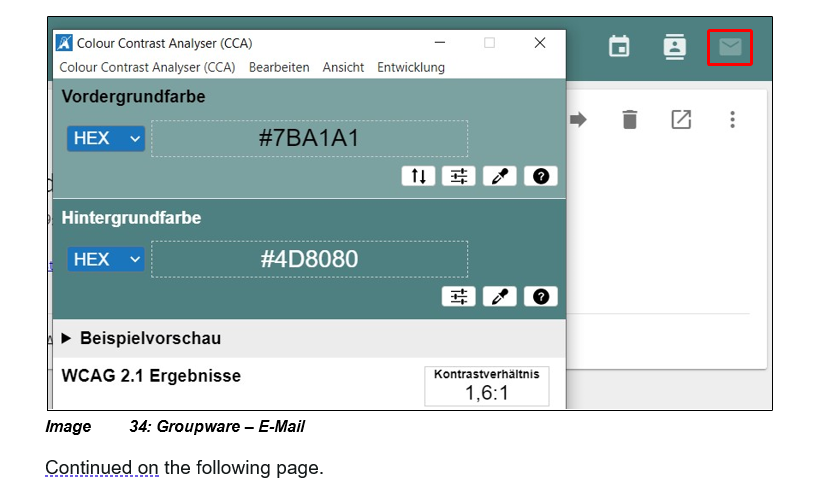

The required contrast ratio of the control element to the background is also too low with a value of 1.6:1. This makes it difficult for visually impaired users in particular to recognize the menu element and distinguish it from other menu elements. Since this is a deactivated control element, this is considered to be a minor anomaly.

Steps To Reproduce

Precondition: Download Colour Contrast Analyser: https://www.tpgi.com/color-contrast-checker/

  1. Click on the calendar/address book/email icons in the upper right corner

  2. Open the tool “Colour Contrast Analyser“

  3. Pick Colour from the foreground of the selected symbol

  4. Pick Colour from the background of the selected symbol

Additional Information

The contrast ratio should be at least 3:1

Tagsaccessibility

Activities

be.lnrw

be.lnrw

2023-06-22 09:38

reporter

Issue History

Date Modified Username Field Change
2023-06-22 09:38 be.lnrw New Issue
2023-06-22 09:38 be.lnrw Tag Attached: accessibility
2023-06-22 09:38 be.lnrw File Added: 4a23aa56-80b7-4548-abbe-a3b2f4cda549.png
2023-06-22 09:38 be.lnrw File Added: c0cee0cc-c619-4107-b96d-15fc457eb285.png
